Procurement Data Sheet
Technical Specifications
| Application Range | |
| Voltage class | 110-1100 kV, subject to project confirmation |
| Use | GIS switchgear insulation and related high-voltage parts |
| Confirmation | Drawing, sample, equipment model, and operating conditions required |
| Engineering Inputs | |
| Mechanical data | Flange size, bolt pattern, creepage path, embedded conductor, and assembly position |
| Electrical data | Rated voltage, insulation level, phase arrangement, and test requirement from project document |
| Quality review | Dimensional inspection, material certificate, and packing method defined during quotation |
Use cases
Applications
GIS insulation
High-voltage switchgear parts
Substation projects
Maintenance spare parts
Delivery planning
Delivery & After-Sales
Typical lead time, MOQ, warranty, and packing details are confirmed by quotation. Custom products can be supplied from 1 piece when drawings or samples are provided.
Target size, material, finish, and application
Estimated quantity, sample needs, and destination
Packaging, label, artwork, barcode, and carton requirements
Certificates or claim wording that must be verified by order documents
Quick Facts
- 110-1100 kV range
- Drawing revision required
- Dimensional inspection
- Project document review
FAQ
RFQ Desk

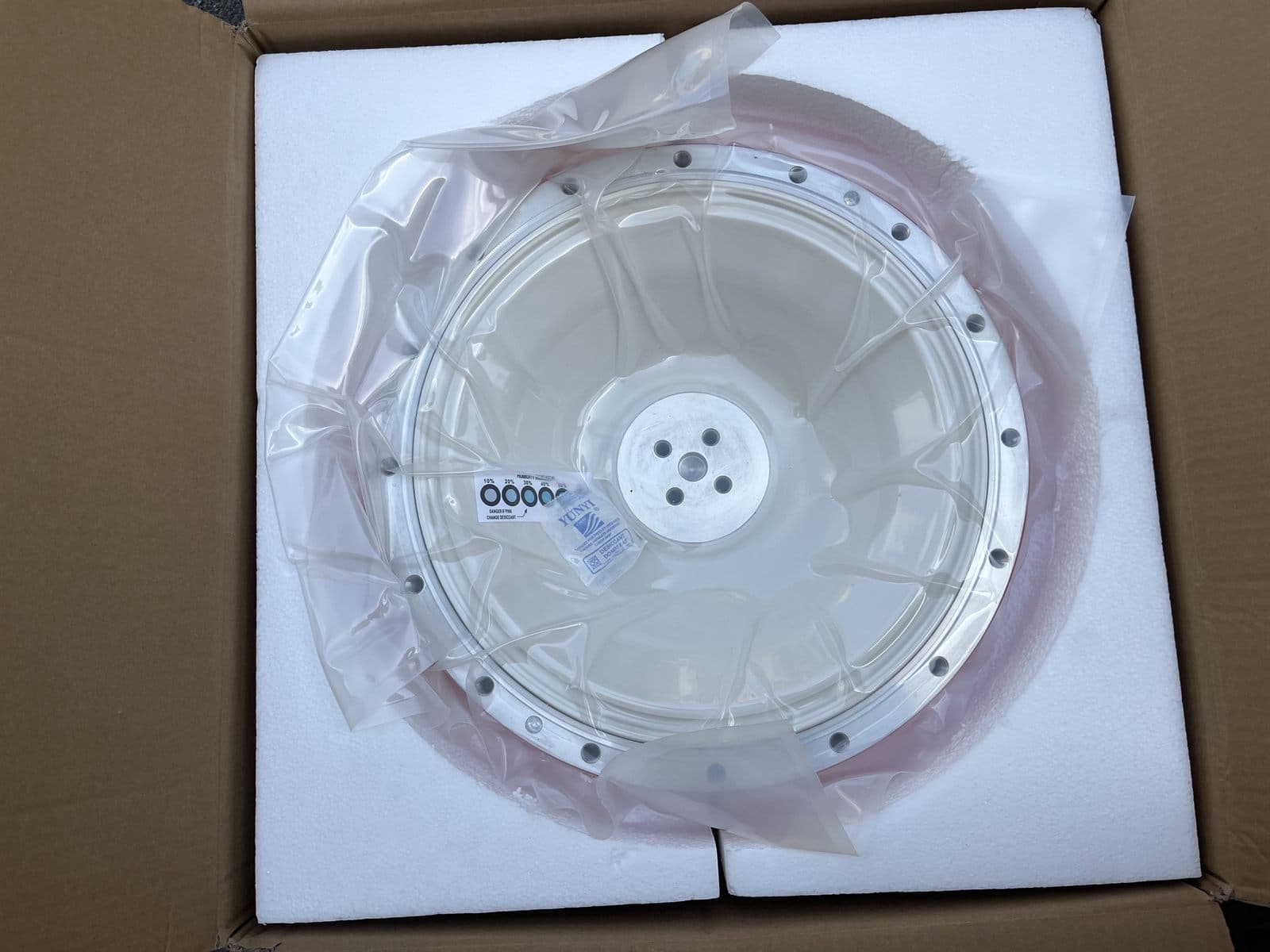

Get a Quote for GIS Insulator
Share model, drawing, photo, quantity, destination country, and any certificate or packing requirement. The export team will confirm selection, documents, lead time, and quotation route.
